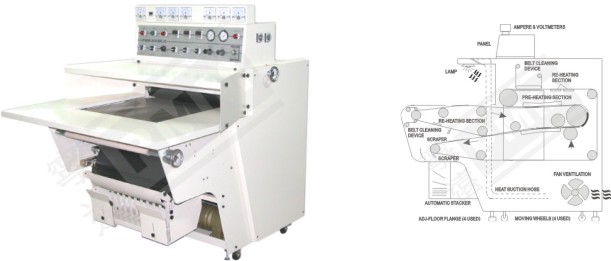

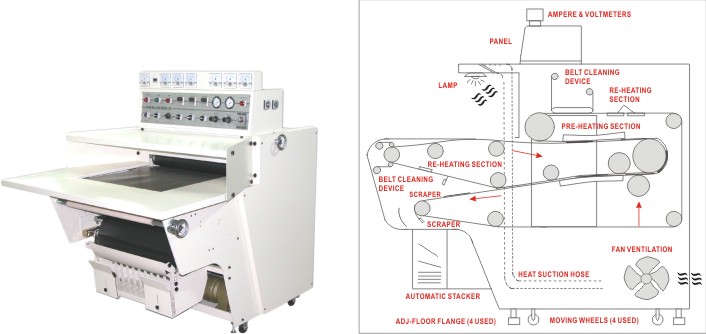

Top fusing Machine
Features
¡E Little usage of space¡E Small energy consumption : 9KW
¡E Pre-heating thus higher production. Sandwich-fusing is possible.
¡E Cooling device, the goods are held under light pressure during the cooling process.
¡E Continuos system - therefore unlimited working length.
¡E The fused parts come back to the operator, only one operator Necessary. Operator can inspect the parts immediately.
¡E Incorporated belt-cleaning device.
¡E Easy to operate.
¡E Little maintenance.
¡E Automatic belt adjustment.
¡E Short heating-up period: 12 min to 180 C.
¡E Easy to read instrument panel.
¡E The change of conveyor belts can be done in a short time. (30 min.)
Model
/ Specification |
PMM-600SC-C |
Phase
/ Voltage |
1~220V
AC or 3~380V AC |
Power
Consumption |
9KW |
Air
Connection |
5/16''
( 8mm ) |
Water
Connection |
3/8''
( 9.5mm ) |
Drainage
Connection |
3/8''
( 9.5mm ) |
Air
Connection |
6
atm. |
Fusing
Width |
600mm
( 24'' ) |
Temperature
Range |
0-200C |
Time
Range |
5-28
sec. |
Max.
Pressure |
5.0Kgs
/ cm2 |
Net
Weight |
480Kgs |
Gross
Weigth |
680Kgs |
Dimensions |
120(W)x145(L)x150(H)cm |
Packing
Volum |
111(W)x151(L)x170(H)cm |
