Pneumatic Heat Transfer Pressing Machine






Model : PMM-HP-28
Ref :128a
Model : PMM-HP-38
Ref :128b
Model : PMM-HP-45
Ref :128c





USAGE:
The machine can be used for any colored design printing on any fabrics by means of hot transfer and for garment low temperature and pressure fusing . Such as children wear ironing and finalizing the design.

-----------------------------------------------------------------------------------------------------------------------

Performance:
ĦETemperature control: adoption ltaly imported parts to ensure high accuracy.
ĦEThe heating plate is special designed by the equality surface heater contraction and adoption Germany _imported heating element.
ĦEElectronic time control and signal indication after complete process.
ĦEUp working table coated with Teflon material, both long life and easy cleaning.
ĦEPressure can be adjusted.
ĦEBottom plate with high temperature silicon rubber foam, for wide range of printing.

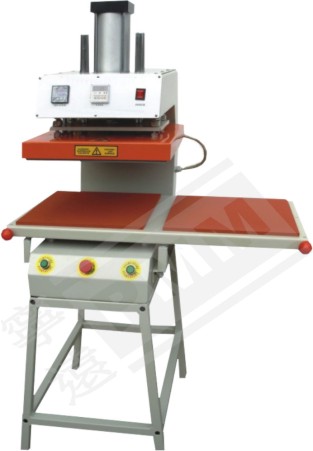

Model : PMM-HP-62
Ref :128d



Type
PMM-HP-28
PMM-HP-38
 PMM-HP-45 PMM-HP-62
Working Tablesize (cm)
22x28
38x38
45x45
38x62
Voltage (v)
~220
~220
~220
~220
Power (Kw)
1x2
2
2.8
3.2
Temperature (c)
0~250
0~250
0~250
0~250
Delaying Time (s)
1~60
1~60
1~60
1~60
Compressing Air
>4
>4
>4
>4
Dimension (cm)
32x54x96
42x120x86
49x150x86
58x196x86
Weight (kg)
55
68
75
85
Remarks
PMM-HP-28 is heating on up and down, others machines are heating on up. We can make heating on down or up and down by requirement.
