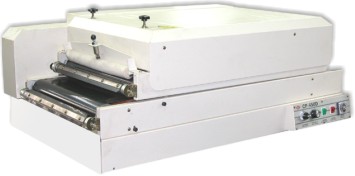

Mini Type Continues Fusing Machine
Model: PMM-CP-450D
¡E Open
arm design enables side feeding of material.
¡E Electronic
thermostat and non-contact solid-state relay (S.S.R.) are able to control
.....the temperature difference while machine is running
¡E Pressure can be adjusted easily
¡E Continuous fusing system helps to improve production
¡E Heating would be stopped automatically while overheated
¡E Maximum pressure 1.5kgs/cm2
¡E Working width: 450mm
¡E Maximum temperature 300 degree Celius
| Model | Phase / Voltage | Net Weight | Dimension (LxWxH)mm |
Gross Weight | Packing
Size (LxWxH)mm |
Power |
| PMM-CP-450D | 3~/380V AC | 130Kg | 1850x800x1080 | 210Kg | 1300x950x800 | 3.5Kw |
