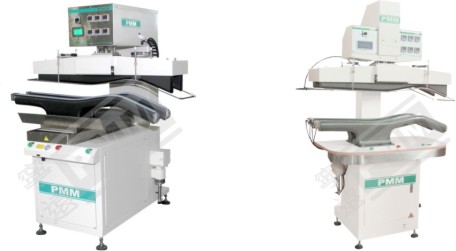

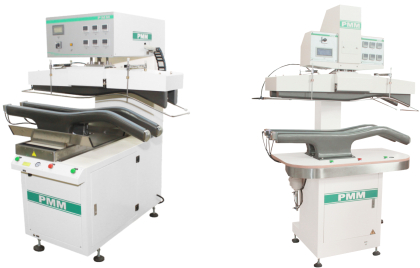

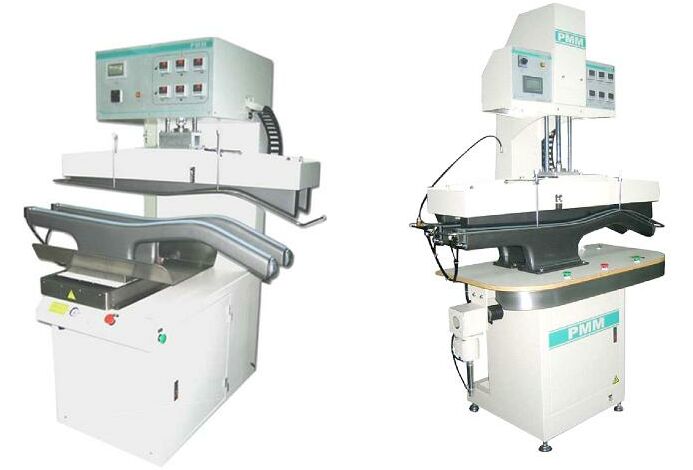

Automatic
Sleeve Seam / Side Seam Fusing Machine (
Special for wrinkle free shirt )
.JPG)
New
( Vertical
press with slide out lower buck ) |
Model:
PMM-SSWR-VB |
Ref¡G35b |
(
Vertical press ) |
Model:
PMM-SSWR |
Ref¡G35a |
¡E

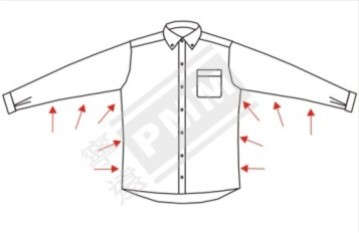

Specialize for sleeve side seam fusing to eliminate seam puckering.
¡E New model in Vertical press design with slide out lower buck to enhance safety.
¡E Custom made 48" buck suitable for any sized garments.
¡E Special design air bag to prevent strike through.
¡E Pressure and temperature can be adjusted absolutely to cater different fabric material.
¡E Fully controlled by micro-computer.
¡E With PLC touch screen control panel for easy operation.
¡E Either connecting to individual vacuum pump or centralized vacuum pump.
¡E Synchronized dual- press button to ensure operating Safety.
¡E New model in Vertical press design with slide out lower buck to enhance safety.
¡E Custom made 48" buck suitable for any sized garments.
¡E Special design air bag to prevent strike through.
¡E Pressure and temperature can be adjusted absolutely to cater different fabric material.
¡E Fully controlled by micro-computer.
¡E With PLC touch screen control panel for easy operation.
¡E Either connecting to individual vacuum pump or centralized vacuum pump.
¡E Synchronized dual- press button to ensure operating Safety.
| Model / Specification | Phase / Voltage | Net Weight | Dimension (LxWxH)mm |
Gross Weight | Packing
Size (LxWxH)mm |
Power | Air Pressure |
| PMM-SSWR-VB | 3~380V AC | 380Kg | 1450x1300x1800 | 600Kg | 1520x1370x1950 | 4.35Kw | 6kg/ cm2 |
| PMM-SSWR | 3~380V AC | 340Kg | 1340x850x210 | 540Kg | 1420x1140x2320 | 4.35Kw | 6kg/ cm2 |
