Automatic

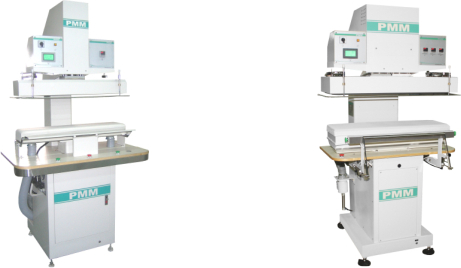

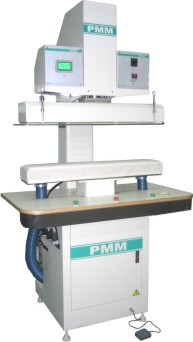

Shirt Placket Fusing Machine
Ref¡G27b
-
Specialize for fusing shirt front placket
- Vertical pneumatic press
- Special design air bag to prevent strike through of glue to fabric
- Pressure and temperature can be adjusted according to the material
- Controlled by the bulit-in micro-computer
- Buck Sizes: 127 x 900mm (5¡¨ x 35¡¨) and 280 x 915mm (11" x 36") are for selection
- Maximum pressure up to 1.5kg/ cm
- With PLC touch screen control panel, it is easy operate
- Dual press buttons to ensure the safeness during the operation
- Vertical pneumatic press
- Special design air bag to prevent strike through of glue to fabric
- Pressure and temperature can be adjusted according to the material
- Controlled by the bulit-in micro-computer
- Buck Sizes: 127 x 900mm (5¡¨ x 35¡¨) and 280 x 915mm (11" x 36") are for selection
- Maximum pressure up to 1.5kg/ cm
- With PLC touch screen control panel, it is easy operate
- Dual press buttons to ensure the safeness during the operation
| Model | Phase / Voltage | Net Weight | Dimension (LxWxH)mm |
Gross Weight | Packing
Size (LxWxH)mm |
Power | Air Pressure |
| PMM-PFWR | 3~/380V AC | 480Kg | 1200x1106x1330 | 550Kg | 1320x1270x1570 | 11.35Kw | 6kg/ cm2 |
| PMM-PFWR (11¡¨ x 36¡¨) |
3~/380V AC | 480Kg | 1200x1106x1330 | 550Kg | 1320x1170x2080 | 11.35Kw | 6kg/ cm2 |
