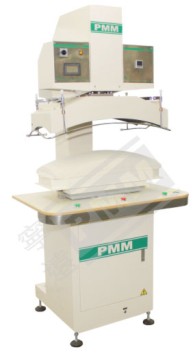

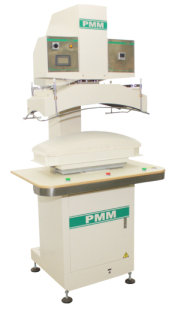

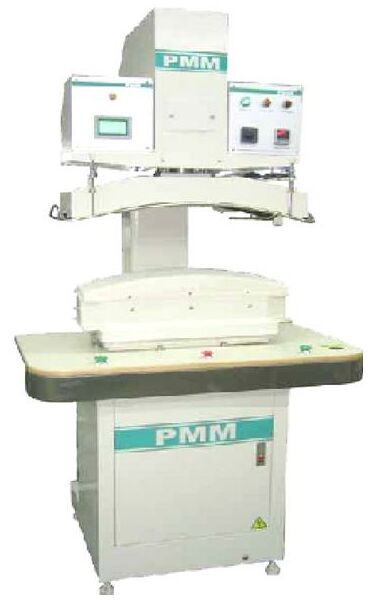

Automatic Back Yoke Seam Fusing Machine ( Special for wrinkle free shirt )


Model: PMM-BYWR
Ref¡G5
Working Area: 7.5'' x 25'' ( Standard mould shape )



Interlining Inside



¡E Specialize for York Seam fusing to eliminate seam puckering
¡E Vertical-press design
¡E Special design air bag to prevent strike through
¡E Pressure and temperature can be adjusted absolutely to cater different fabric material
¡E Fully controlled by micro-computer
¡E With PLC touch screen control panel for easy operation
¡E Synchronized dual press button to ensure operating safety
¡E Either connecting to individual vacuum pump or centralized vacuum pump







Model / Specification Phase / Voltage Net Weight Dimension
(LxWxH)mm 		Gross Weight Packing Size
(LxWxH)mm 		Power Air Pressure
PMM-BYWR 3~380V AC 286Kg 1000x850x1950 476Kg 1320x1020x2080 7Kw 6kg/ cm2
