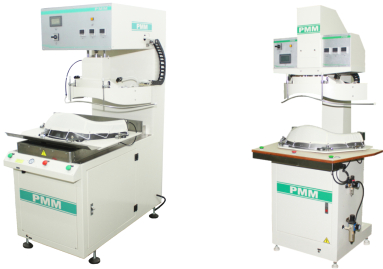

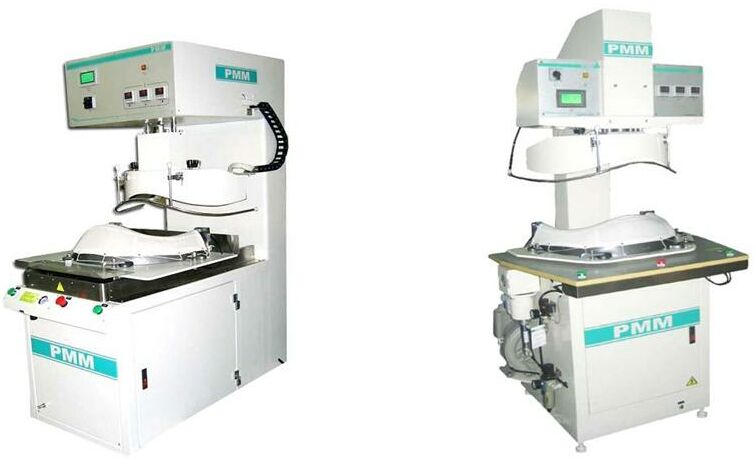

Automatic Arm Hole Seam Fusing Machine ( Special for wrinkle free shirt )


( Vertical press with slide out lower buck )
Model : PMM-AHWR-VB
Ref¡G4b
( Vertical press )
Model : PMM-AHWR
Ref¡G4a



With exchangeable buck and synchronized dual-press button

Interlining Inside




¡E Specialized for arm hole seam fusing
¡E Pneumatic Press
¡E New design of the model allow the lower buck to slide out, which helps to reduce accident from occuring
¡E Special design air bag helps to prevent strike-through of glue to fabric
¡E Pressure and temperature can be adjusted according to different choice of fabric
¡E Fully controlled by PLC
¡E Dual press button helps to ensure operation safety





Model Phase / Voltage Net Weight Dimension
(LxWxH)mm 		Gross Weight Packing Size
(LxWxH)mm 		Power Air Pressure
PMM-AHWR-VB 3~/380V AC 260Kg 1350x900x1750 470Kg 1420x970x1900 2.4Kw 6kg/ cm2
PMM-AHWR 3~/380V AC 245Kg 1030x914x1920 425Kg 1120x1020x2080 2.4Kw 6kg/ cm2
